Flush Folding Flatracks
Lease 20ft
Flush Folding Flatracks
Get a leasing or sales quote
How would you like us to contact you?
Please select contact preference
Please enter your name
Please enter your company name
Please enter your location
Please enter your email address
Please enter your phone number
Please select service
By clicking "Submit," you agree to comply with Triton's Terms & Conditions
Features
  • Built to carry heavy or oversized cargoes
  • Great for specialized shipments of steel, pipes, drums and machinery
  • Forklift pockets for easy empty handling

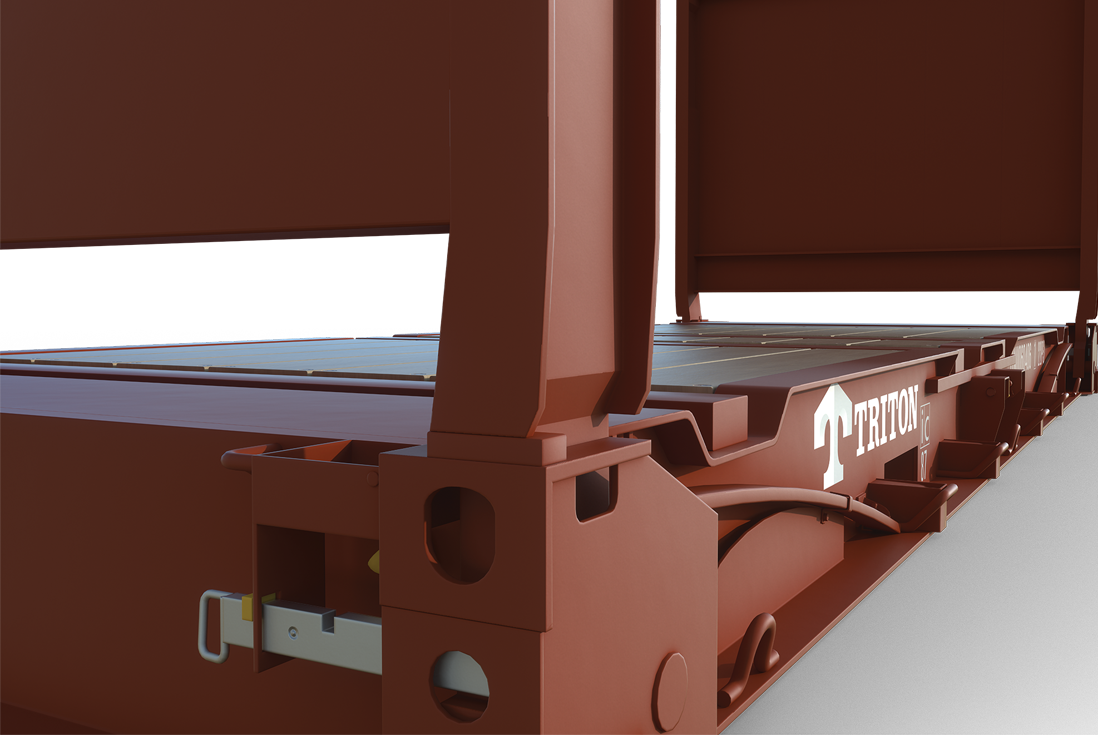

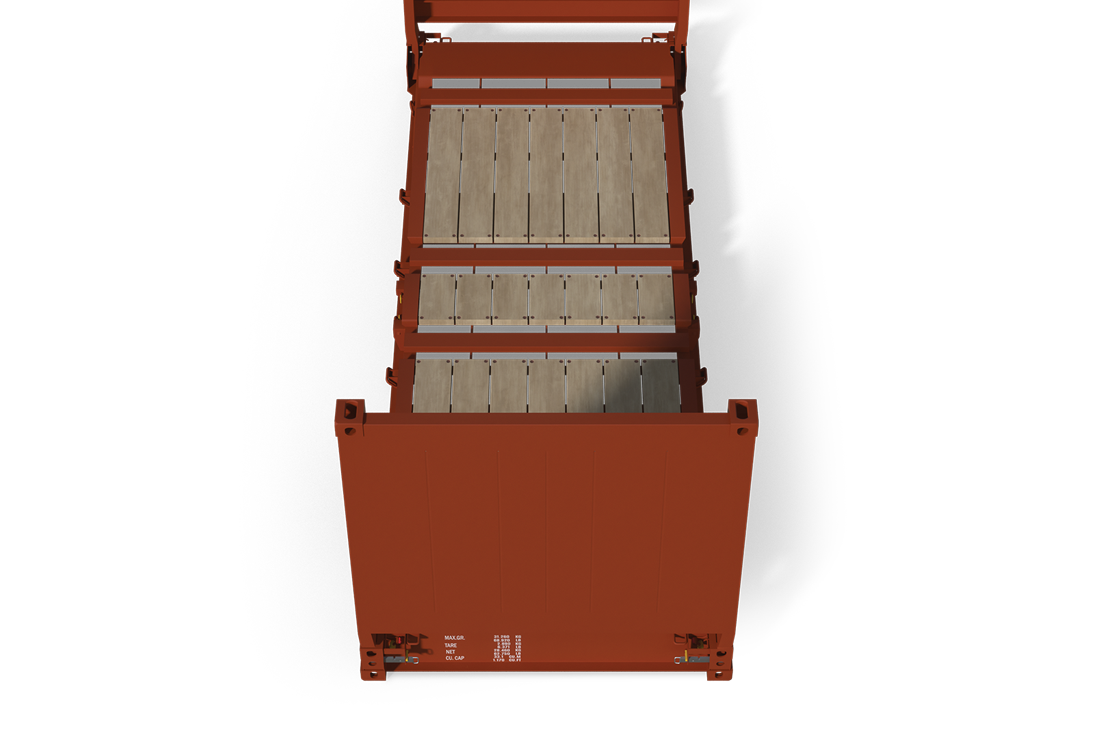

  • Heavy duty steel frames and thick plank floors and lashing rings all around
  • With flush folding end frames to allow for efficient stacking and repositioning
  • Triton’s industry leading new production testing and inspection criteria ensures the highest quality container
  • Available in the high demand hub ports
  • Backed up by Triton’s global network of supply locations and dedicated leasing and support teams
  • Flexible lease terms to meet your company needs
Download product specification documents

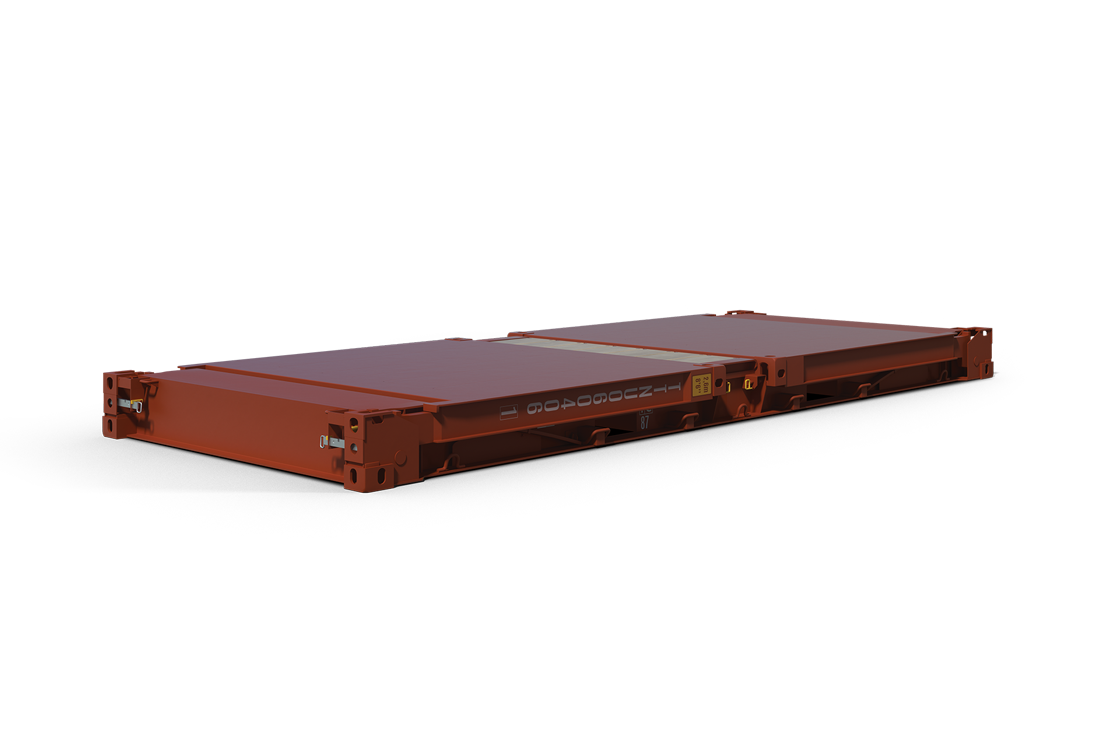

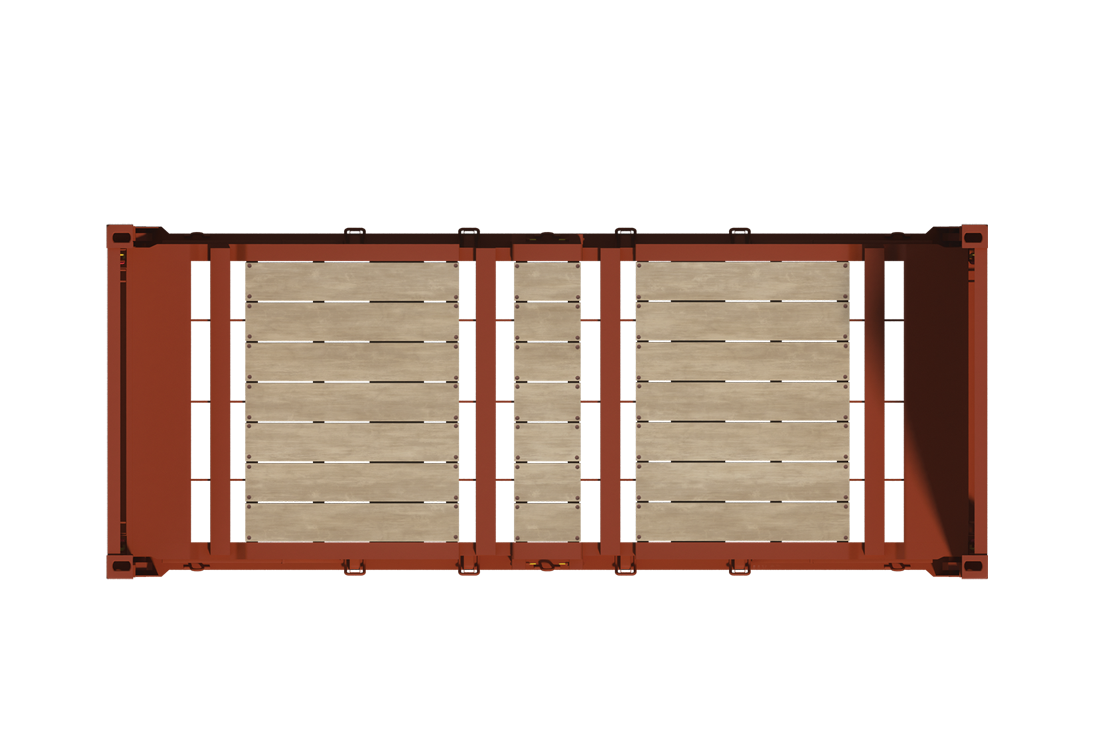

Triton 20ft Flush Folding Flatracks for lease

Triton 20ft Flush Folding Flatracks are the smallest Flatrack Container available in our lease inventory. They are just under 20ft long, 8ft wide, 8ft 6.0" high, and have a payload of 42,000 Kgs. They are designed to hold and ship weighty or oversized cargo that is too large or heavy to transport inside Standard Dry Containers or Open Top Containers.

With heavy-duty steel frames, lashing rings, and thick plank floors, Flatracks are ideal for specialist shipments and are frequently used to transport out of gauge cargo such as large machines, pipes, boats, steel, and timber.

At Triton, we specialize in leasing Flatracks to numerous industries worldwide, from Ro/Ro operators and companies specializing in project shipments to those operating within the renewable energy sector. With an active container fleet of more than 7 million TEU, we lease 20ft and 40ft Flatracks in high-demand hub ports worldwide.

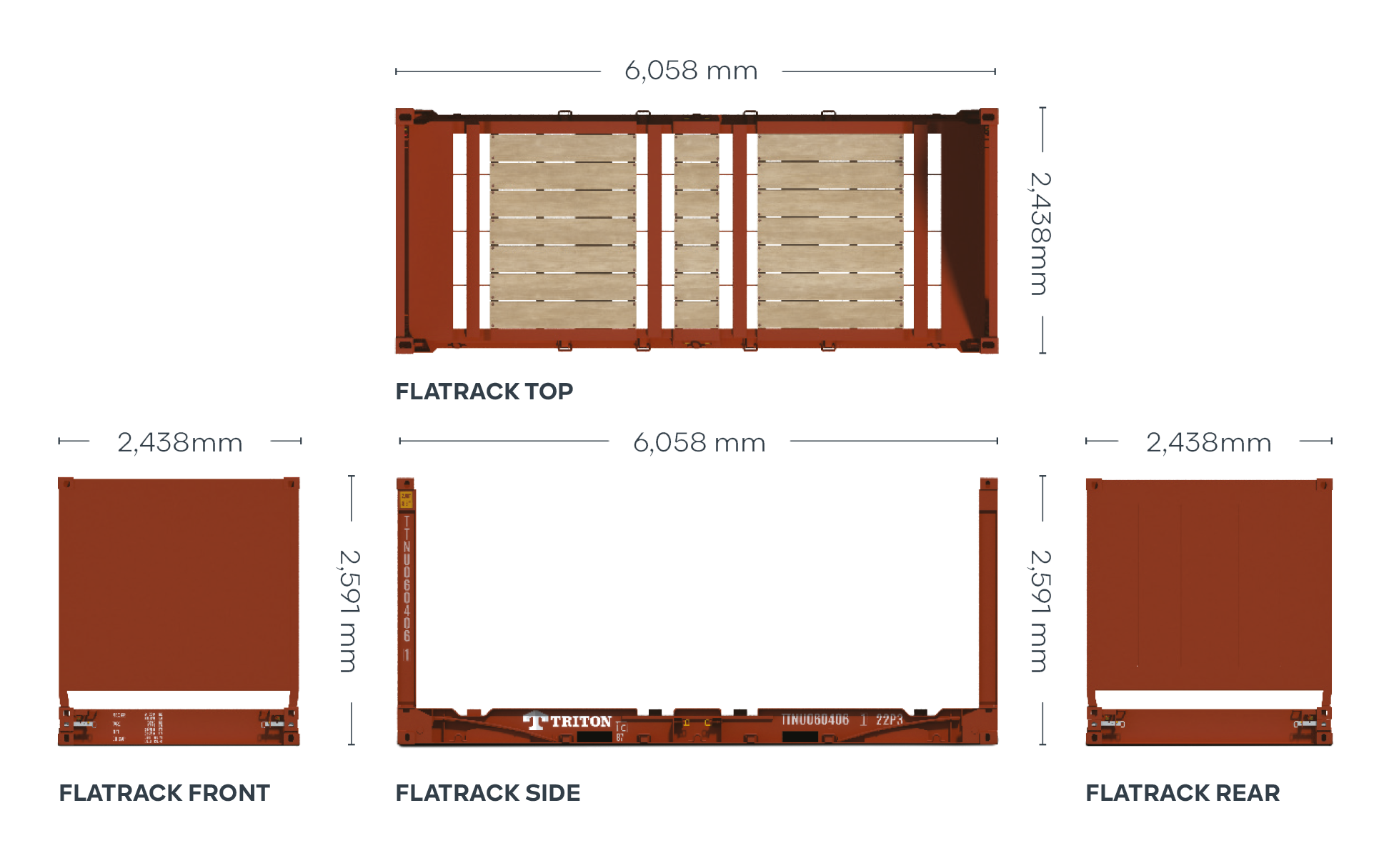

Dimensions (Metric/Imperial)
External Dimensions
Length (Base bottom casting)
6,058 mm
19’ 10.5”
Width (Base bottom casting)
2,438 mm
8’ 0.0”
Height (End frame up)
2,591 mm
8’ 6.0”
Height (End frame down)
370 mm
1’ 2.6”
Internal Dimensions
Length (Between end panels)
6,038 mm
19’ 9.7”
Width (Over bottom side rail)
2,194 mm
7’ 2.4”
Height (Side rail to top castings)
2,233 mm
7’ 3.9”
Capacity & Weights
Max Gross
45,000 kg
99,200 lbs
Payload
42,000 kg
92,590 lbs
Tare
3,000 kg
6,640 lbs

NOTE: The dimensions and door openings of all containers correspond to ISO standards. However, due to production tolerances, a difference in measurement is possible.

DISCLAIMER: Every effort is made to ensure this information is accurate, however Triton does not assume any liability for the accuracy of the information and content provided in marketing, information materials, websites, or for the consequences resulting from using the information and content provided. Triton does not guarantee or claim that said information and content is exhaustive. Claims as to the exhaustive nature of said information and content are excluded. The information and content is only provided for advertising purposes and is non-binding. No explicit or implied warranties or guarantees are made. The container displayed only represents a sample of the entire fleet.
The following items are registered or unregistered service marks in the United States and/or foreign jurisdictions pursuant to applicable intellectual property law and are the property of Triton International Limited and its subsidiaries: Triton® and TAL®.
